Product Center

Product Classification
DZ15 Molded Case Circuit Breaker

Print current page

Product Description

  • brief introduction
  • technical parameter
  • Product size

Application

DZ15 series molded case circuit breaker (hereinafterreferred to as circuit breaker) is suitable for circuit ofAC 50Hz, rated voltage 380V, rated current 100A, usedto distribute electric energy and protect the circuit andmotor against over load and short circuit, it also canbe used to switch circuit and start motor infrequently. The products are in conformity with such standardsas GB 14048.2, GB 14048.4, IEC 60947-2 and IEC 60947-4.

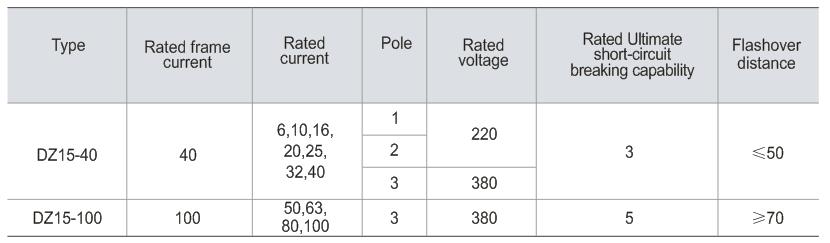

Main Technical Data

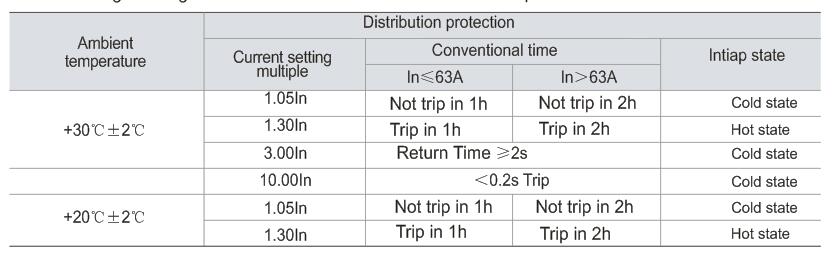

Inverse time lag breaking characteristics of circuit breaker for distribution protection

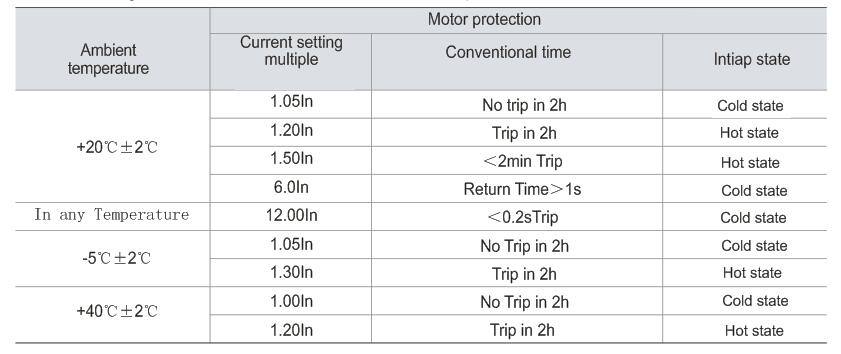

Inverse time lag characteristics of circuit breaker for motor protection

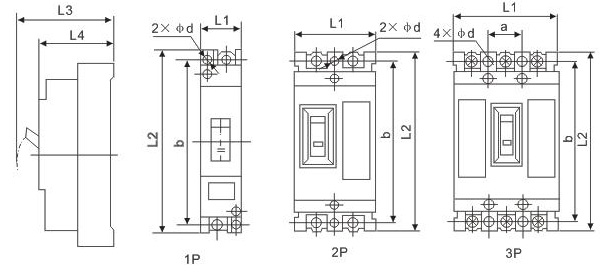

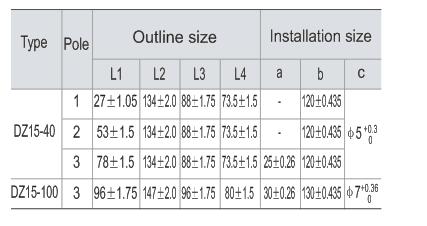

External And Installation Size
