CKSC Series high voltage series reactor

Print current page

Product Description

brief introduction
technical parameter

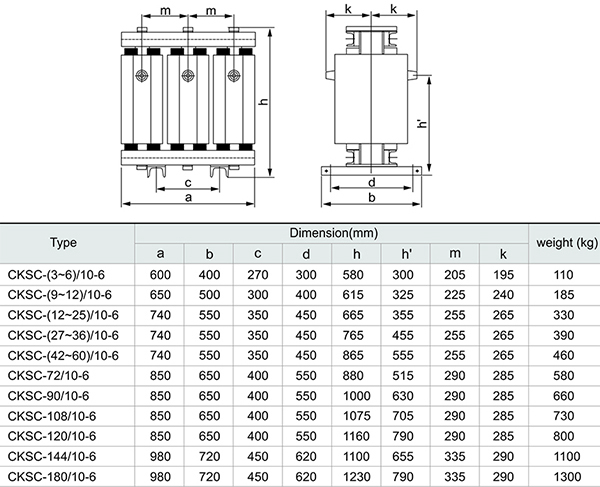

Product size

?Application

The products used in the power system of 0-63KV and below, series connected with the system, to eliminate voltage distortion, and improve the electric quality and ensure safe operation of the power system, limit the short current when system has fault. The products operates in substations of power system, electric railway, metallurgy, chemical industry, petroleum, and other places where high flameproof level, electromagnetic immunity is required, or installation place is limited.

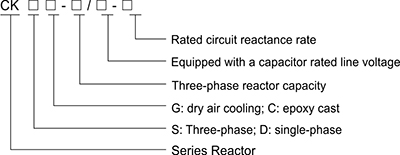

Code and implication

? ?

Technical Features

1.Coil cast by epoxy resin, with the features of flameproof, self-extinguish, free of maintenance, high mechanical strength, high short circuit withstand level, high insulation level, low partial discharging level, long service life and etc.

2.Iron core by use of production technology of dry type reactor, with the merits of small vibration, low noise, low magnetic leakage, small electromagnetic interference

3.Compact structure, small size, small installation space

4.The product complies with IEC288-88 and JB5346-98 standard issued by State Power Bureau, it reaches up to international latest level.

The performance parameters

Noise level: capacity less than 600kVA is 55dB,capacity 600~1200kVA is 58dB;

Max temperature-rise: 90K;

Insulation level: LI75AC35;

Reactance deviation: Reactance deviation at powerfrequency rated current is 0～+5%;

Reactance value of each phase has a deviation of ±2% with the three-phase reactance average value; Reactance deviation is within -5%

at 1.8 times ofrated current;

Main Technical Data
