Normal working/installation conditions

1. ?Installation sites: Indoor

2. ?Ambient temperature : (-5~40)℃

3. Ambient humidity: ≤80%

4. Altitude: ≤1000m

5. Atmospheric conditions: no serious impurity?in the atmosphere.

Ordering instructions

When the customer ordering, must provide the following information:

1,product model and Install the bus width;

2, current ratio;

3, rated output, and the corresponding accurate level;

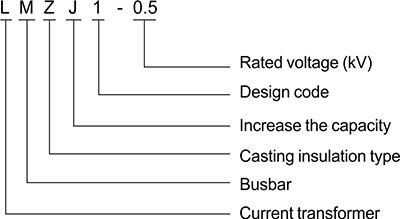

For example: solid order LMZJ1-0.5, rated output current ratio 600/5 A and 5 VAAccurate magnitude 0.5 magnitude of transformer.

The order code for LMZJ1-0.5   600/5 5 va a magnitude of 0.5.

4, if you have special requirements, can be customized consultation with the manufacturer.

The installation accessories
