Print current pageProduct Description
- brief introduction
- technical parameter

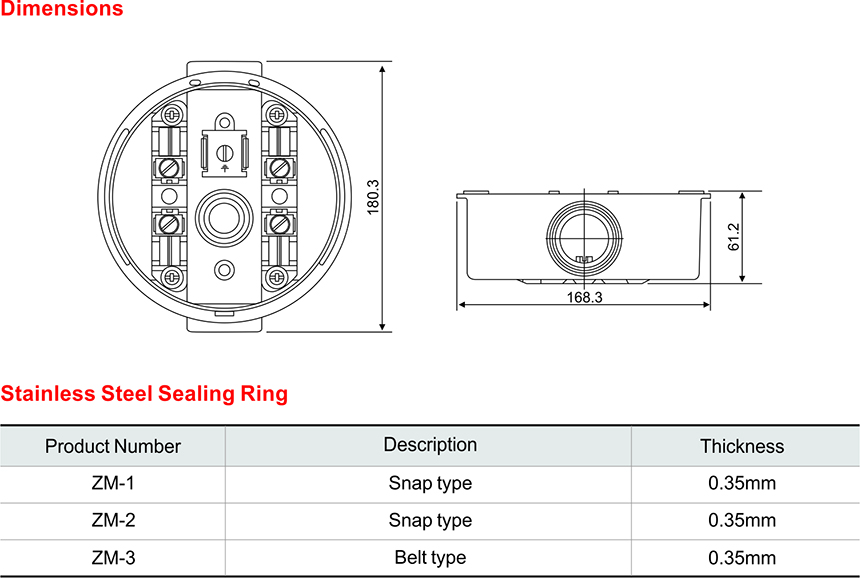

- Product size
Features
100A, 120/240V AC, Single phase, 2 or 3wires
Line and load lugs: 1/0 Max, Cu-Al
Conforms to ANSI 12.7
Mounting: Surface, pole outdoor.
Locking: Sealing ring has lock provision.
Housing
Die cast Aluminum electrostatically applied epoxy baked gray powder finished.
Round type base.
NEMA 3R Rating for outdoor use.

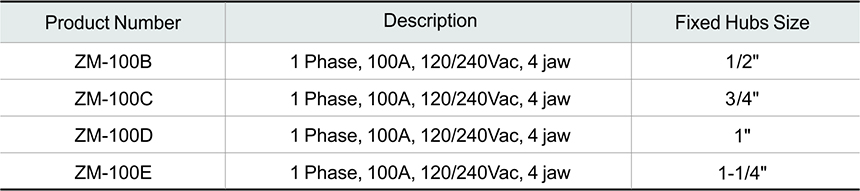

Specification
